Gentle Safe-Spiral

Category:

Description

Protection for Hoses

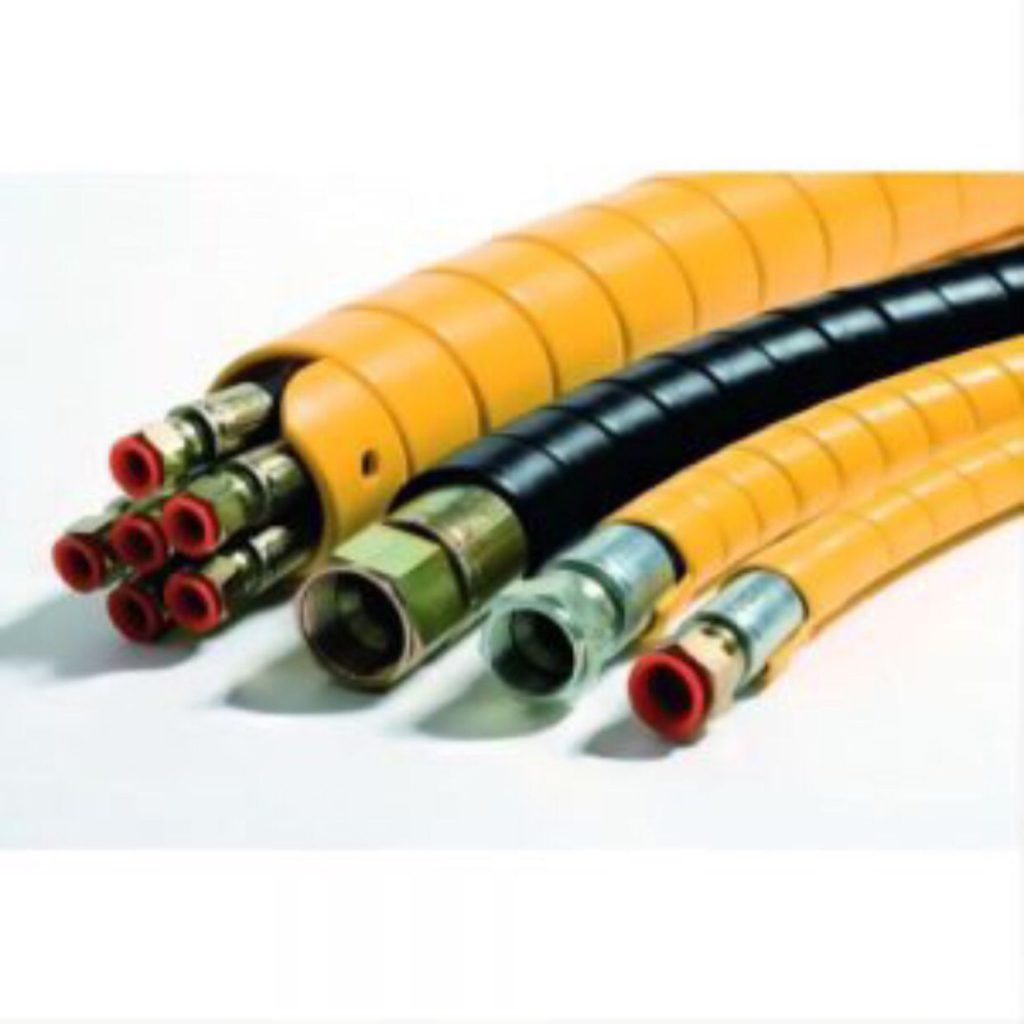

Safe-Spirals, plastic hose protectors, protect hydraulic and pneumatic hoses from deterioration, shocks and abrasion. They improve the visibility of hoses, thus preventing dangerous situations. The protective spirals are easy to install either before or after hose installation.

Safe-Spirals are manufactured by direct compression of the raw material. Due to the manufacturing method the product has a more durable construction and rounded edges which do not damage the hoses.

Nominal Outer Diameters
12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm
63mm, 75mm, 90mm, 110mm, 140mm



Gentle Safe-Spiral – Protection for Hoses

Gentle Safe-Spirals, our standard plastic hose protectors, protect hydraulic and pneumatic hoses from abrasion, shocks and general wearing, and prolong this way the life of your hoses.
Yellow spirals make hoses more visible and prevent possible accidents beforehand.
These protective spirals are easy to install either before or after hose installation and offer an economical and qualitative choice for hose protection.

Gentle Safe-Spirals are manufactured by direct compression (extrusion) of the raw material HDPE.
Due to the manufacturing method the product has a more durable construction and rounded edges which do not cause damage to hoses.

Gentle Safe-Spirals:



– are resistant to acids, oils and solvents
– are flexible
– are UV-protected
– include antistatic additive to reject dust and dirt
– have operative at temperature range from -50°C up to +80°C (continuous) / 100°C (short time)
– are recyclable

For which machines?

  • Forest machines
  • Agricultural machines
  • Mining machines
  • Bulldozers / Earthmovers
  • Tractors
  • Excavators
  • Trucks, trains, forklifts
  • Construction machines, big or small
  • Airplane ground cables

Basically any machine with hydraulic hoses!



Nominal Outer Diameters
12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm
63mm, 75mm, 90mm, 110mm, 125mm, 140mm

See Technical Data for more details.

Lengths
In coils: see table below

Pre-cut lengths up to 6 meters according to order. Pre-cut Safe-Spirals (diameters 75mm – 140mm) are equipped with a hole to join several protectors together in order to achieve the desired length or to fix the protector at its location.

See Standard Packages here.

Colors
Standard colors: black and yellow, other colors available on request (MOQ 600m per color)

Coils:

Diameter Length
12 – 20 mm 25 m
23 / 32 / 50 mm 25 m and 50 m
40 / 63 mm 25 m
75 / 90 mm 20 m
110 mm 15 m
125 mm 12 m
140 mm 10 m



*** diameters 12mm, 16mm, 40mm, 63mm and 125mm and special colors are available only in coils, not in pre-cuts.

Gentle Safe-Spiral – Technical Details

Nominal outer
Ø mm
Nominal inner
Ø/mm
Weight kg/m Wall
W mm
Pitch
P mm
Hole diameter
Z mm
Recommended usage range (hose OD mm)
12 mm 9,6 0,04 1,2 10,5 9 – 13
16 mm 13,4 0,06 1,3 12 13 – 18
20 mm 16,0 0,09 2,0 20 7 16 – 22
25 mm 20,6 0,15 2,2 21 7 20 – 27
32 mm 27,0 0,19 2,5 22 7 27 – 36
40 mm 34,6 0,30 2,7 24 34 – 44
50 mm 43,2 0,40 3,4 30 7 43 – 55
63 mm 55,6 0,65 3,7 37 55 – 67
75 mm 66,2 0,73 4,4 42 10 66 -80
90 mm 80,2 1,20 4,9 45 10 80 – 98
110 mm 99,0 1,76 5,5 50 10 99 – 115
125 mm 113,2 2,05 5,9 52 113 – 130
140 mm 127,0 2,50 6,5 55 10 125 – 155
Spirals open during storing and transportation but will return to the original shape once installed.
Rolls do not have a hole at the ends.
